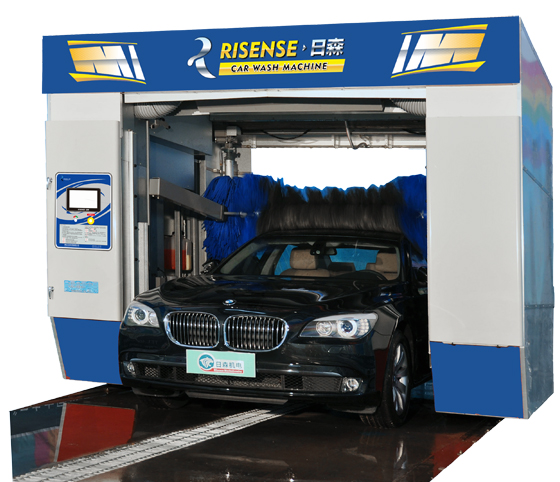

Rollover car wash machine (CF-300)
Description:
Main Features:
1.Can identify the car model with photoelectric sensors controlled by CPU.
2.Hot-dip galvanized frame keep more than 15 year's working life.
3.72L water and 0.31kw electricity consumption/car, high energy saving.
4.15 cars/hour washing capacity.
5.IP67 waterproof electric motor make the machine work well in the water.
6.Inclinable side brush strengthens cleaning ability around the car.
7.The dovetail foam brush makes the car washing more quiet and clean.
8.The waterproof contral panel with film cover makes the operation easier and works normally against sunlight.
Features:
High pressure water, shampoo,wax, drying.
Equipment Parameter
Overall dimensions | 2610x3600x2850mm |
Assembling range | 11000x3700x3300mm |
Moving range | 10000x3700mm |
Available size for car | 5200x2100x2100mm |
Available car to wash | car/jeep/coach within 10seats |
Washing time | 2'45"(1 rollover)/4'15"(2 rollover) |
Car wash capacity | 15-20cars/hour |
Mains voltage | 3PHASE AC380V /50HZ |
Total power | 18.97KW |
Water supply | DN25mm/Waterflow rate≥80L/min |
Air pressure | 0.75-0.9Mpa/Airflow rate≥0.1m3/min |
Water/electricity consumption | 72L/Car, 0.31kw/Car |
Shampoo consumption | 7ml/Car |
Water wax consumption | 12ml/Car |
Equipment Advantages
Main Features:
1.Can identify the car model with photoelectric sensors controlled by CPU.
2.Hot-dip galvanized frame keep more than 15 year's working life.
3.72L water and 0.31kw electricity consumption/car, high energy saving.
4.15 cars/hour washing capacity.
5.IP67 waterproof electric motor make the machine work well in the water.
6.Inclinable side brush strengthens cleaning ability around the car.
7.The dovetail foam brush makes the car washing more quiet and clean.
8.The waterproof contral panel with film cover makes the operation easier and works normally against sunlight.
Equipment Parameter
Advantages:
1). High efficiency silence dryer.
2). CPU control systems imported from Japan.
3). Automatic wax and foam formulating system.
4). Wax sprinkling system
5). Third generation foam brush.
6). Hot-dip galvanized and ZAM frame without welding.
7). High pressure water systems.
8). The sensor from Japan.
9). The thin film operate panel with flame retardant and weather resistance.
10). The frequency converter made by Mitsubishi
11). Air cylinder made by Koganei
12). Variable frequency motor made by SKK from Japan
