Products
Car washer product
Plate type washing turbine
Description:

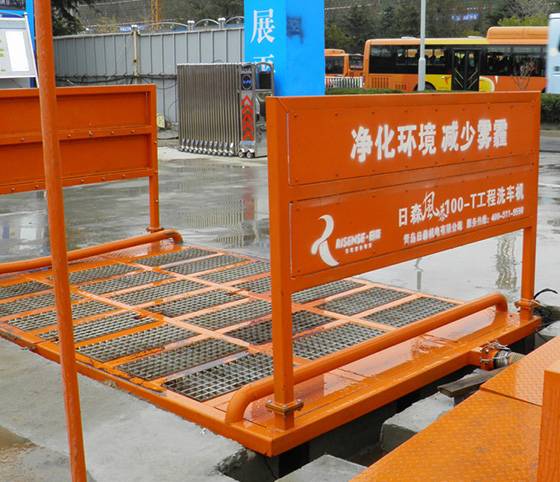

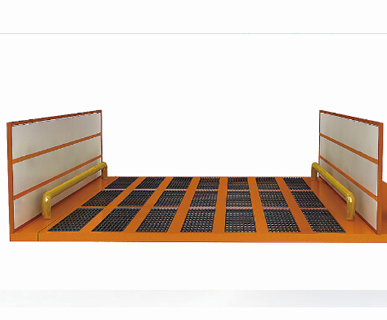

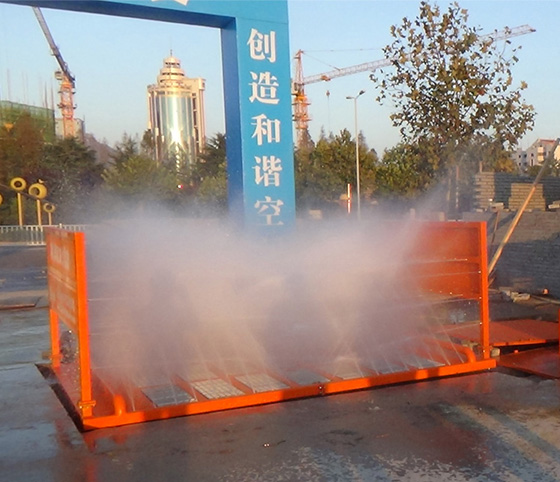

Storm 1 plate type washing turbine
Features:
1. Its ideal for construction industry, mines, energy plants and landfills.

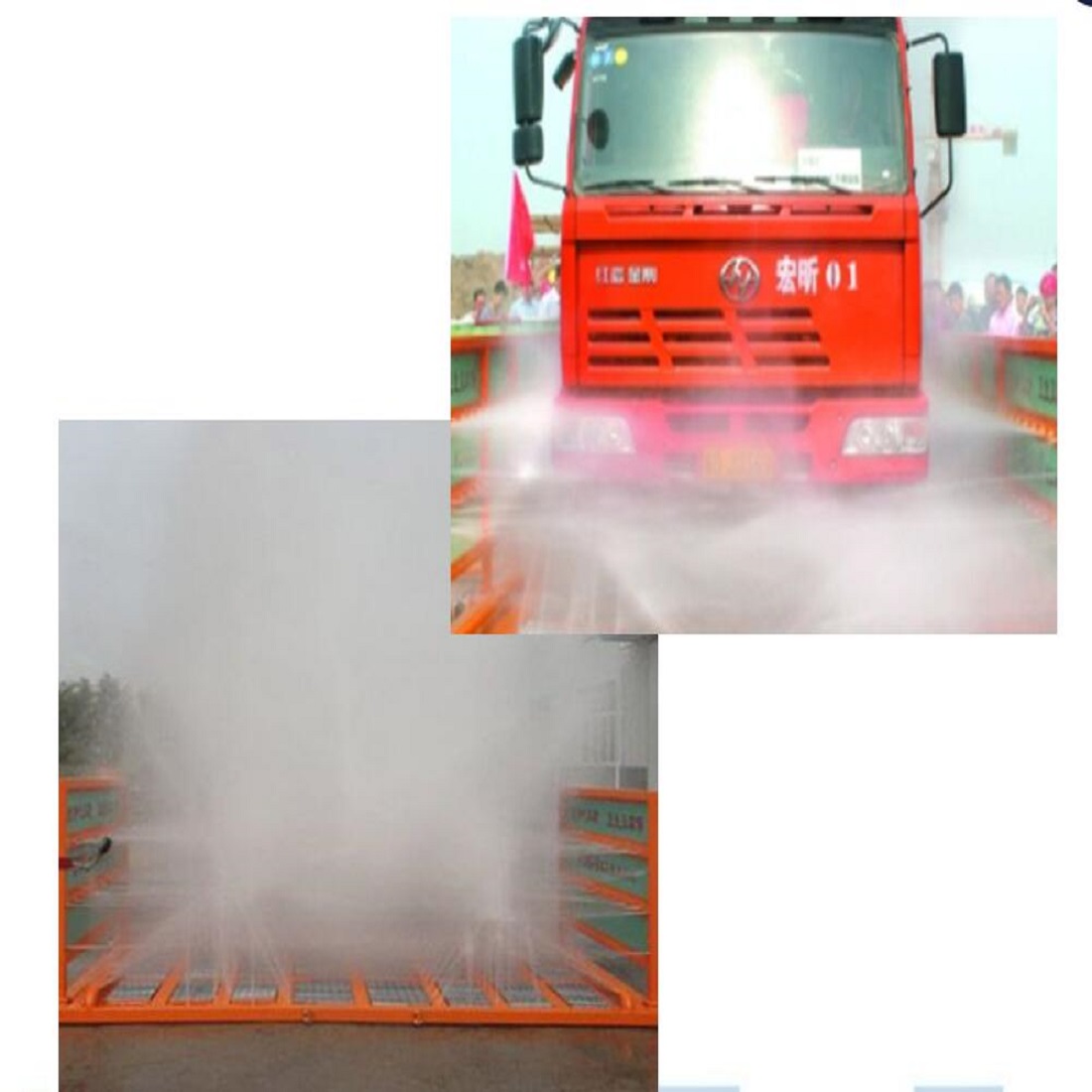

2. To provides 360° Spray on the wheel tire, vehicle surface with high pressure water.
3. The washing and dredge work can be finished automated controlled by PLC systems
Equipment Parameter
Overall dimensions | 2640x3600x1300mm |
Mains voltage | AC380V /50HZ/20A |
Total power | 10KW |
Water supply | DN25mm/Waterflow rate≥120L/min |
Washing pressure | ≥3.5kg/cm2 |
Available car to wash | 100T≥trucks |
Washing time | 0-100s/each |
Water/electricity consumption | 5L/each |
Starting mode | Automatic/ Manual /Remote control |
Equipment Advantages
1. Its ideal for construction industry, mines, energy plants and landfills.
2. To provides 360° Spray on the wheel tire, vehicle surface with high pressure water.
3. The washing and dredge work can be finished automated controlled by PLC systems

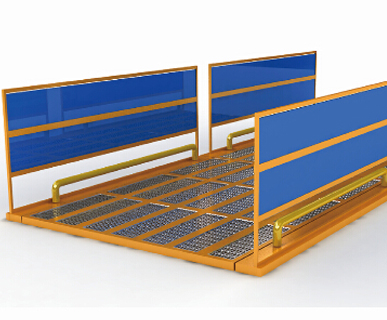

4. The wheel wash frame adopted high quality steel with preservative treatment can keep the whole machine high safety and stable performance, high capacity and long life use.
5. High quality control systems, motors, pumps and photoelectric sensors from Japan can keep the car wash running with great performance in any conditions.
6. Very easy to install, maintain and relocation with our after sales service and lifetime warranty.
Equipment Parameter
